Hughes Equipment OEM Parts

ProEx Food is the global distributor of Hughes Equipment OEM fresh market sweet corn equipment parts.

Product Description

We are the global distributor of Hughes Equipment OEM fresh market sweet corn equipment parts, including huskers and cob saws.

When you buy your replacement parts from ProEx Food, you gain peace of mind that your threads, keys, bearings and more will work immediately and optimally with your equipment. We also recommend replacing most bearing brackets, shafts and roll assemblies every two years to increase product quality and throughput, and to reduce downtime.

Our replacement parts are competitively priced with some available immediately and others with reasonable lead times.  Improve your uptime and operational efficiency by using ProEx Food as your one-stop-shop for fresh market sweet corn equipment and parts.

Common Stock Parts

ProEx Food recommends keeping stock of these common parts in your inventory to make sure you avoid downtime during your production runs.  See the pdf for quantities per model:

Hughes Huskers

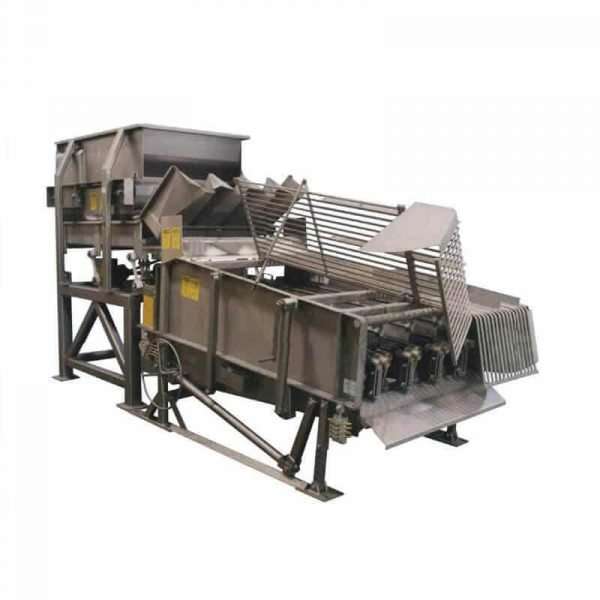

sweet corn processing line - corn husker

Part No

Description

Alternate / Notes

P048715

1-1/4″ Cam Follower



P048714

3/4″ Cam Follower



P061615

1-1/2″ Pillow Block (Vibratory Feeder)



P061635

1-3/8″ Pillow Block (Husker Drive)



P597675

Bearing, (agitator) plastic



03210274

Oilite Bearing



03210273

Sleeve Assembly



0321391B

Bearing, Flange, Bronze, 1-3/8″



P073361

Polychain GT 14M 994-37



P073341

Timing Belt #560-8M-30



0328882

RH Bearing Assembly, W/Cap & Presslok Fitting (S/S)

(0324230B RH Assembly w/Cap & Barbed Fitting S/S)

0328881

LH Bearing Assembly, W/Cap & Presslok Fitting(S/S)

(0326316B LH Assembly w/Cap & Barbed Fitting S/S)

0328884

Bearing Assembly, 1-3/8 w\ Presslok fitting

(0323336B Bearing Assembly, 1-3/8 w/Barbed fitting)

P073444

3VX-710 Belt



0322917B

1-3/4″ Roll Shaft 73-1/8″ long



0322916B

1-3/4″ Roll Shaft 69-1/8″ long



0323967B

Collar, Enclosed Thread Lock



P066658

N 09 Lock Nut



P066659

W 09 Lock Washer



0322471B

Spur Gear (Small Teeth 3.092 dia)



0322472B

Spur Gear (Large Teeth 3.223 dia)



0323507B

50B16 Coupling Half 1-3/8″ Bore



P078725

Coupling Chain Assembly 5016



P105442

Eccentric 18 4



P074232

Bushing for Push Arm



1000195C

Rubber Bushed Arms



0321423B

Rubber Pad



P732779

ELBOW, MALE SWIVEL, 1/4T X 1/8 NPT

(Used w/ 0328884)

P732780

FITTING, MALE CONNECTOR 1/4T X 1/8 NPT

(Used w/ 0328881 & 0328882)

P732722

Fitting Assembly – Adj. “L” Fitting

(Used w/ 0323336b)

P732755

Fitting,Barb

Used w/ 0324230B & 0326316B)

P732754

Grease Line



Hughes Cob Saw

sweet corn processing line - cob saw

Part No

Description

P061668

BEARING PILLOW BLOCK 1-1/4″ BORE EZ-KLEEN



POLYMER HOUSING ST STL INSERT

P056401

BEARING, FLANGE 4-BOLT 1-1/4 BORE EZ KLEEN



POLYMER HOUSING ST STL INSERT

P061655

BEARING,INSERT ASSY, 1-1/2 BORE TAPERED BEARING

0374177

COUPLING HALF 1-1/2 BORE

0374178

COUPLING HALF 1” BORE

P079802

SPIDER, AL100, (IN SHEAR)

0373868

SAW BLADE – STAINLESS STEEL

0373116

ROLL, (3) GROOVE, END HOLES

P078104

CHAIN, 1-1/2 PITCH

0373211

ROLL SHAFT

Hughes Kernel Cutters

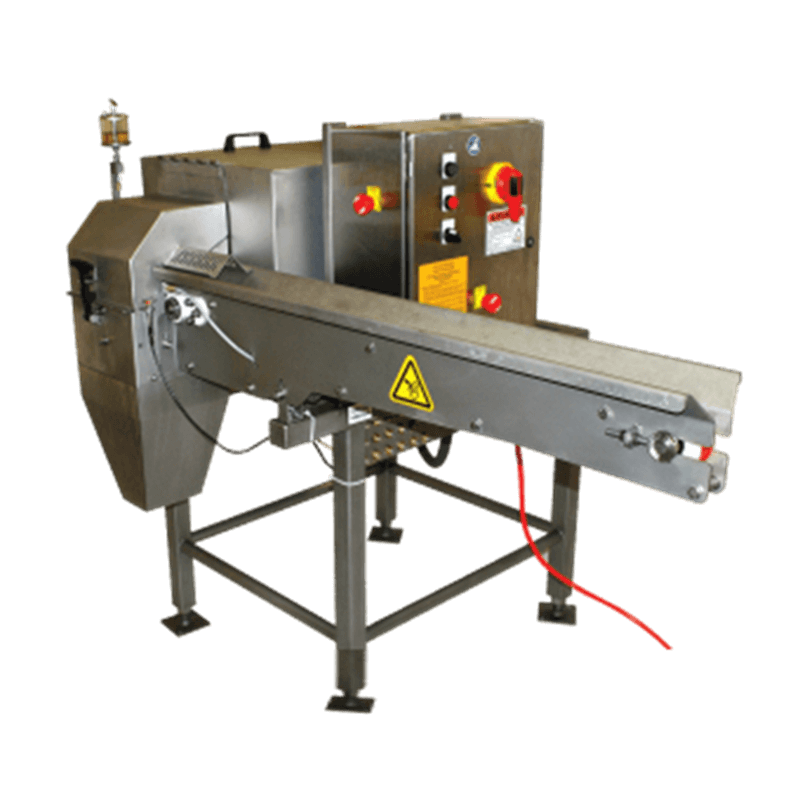

sweet corn processing line - corn cutter

Qty

Part No

Description

2

P703322

SPRING, COMPRESSION 3/4 OD X 3 1/2: 0.91 WD ST STL

2

372461

DETAIL, GUIDE BLOCK

2

372072

SHAFT, QUILL

2

372070

UNION, 5/8 BORE

2

372376

U-JOINT, 5/8 BORE X 1/2 SQ

2

P769220

U-JOINT BOOT

4

P043690

BEARING, SLEEVE; 5/8ID x 3/4OD x 5/8L; BRONZE

4

372195

WASHER, THRUST

4

372196

SPACER BUSHING

2

P451934

ROLL, COB

2

P451935

ROLL, FEED

2

322878

ASSEMBLY, ROLLER SHAFT SPINDLE, 03

2

P051298

BEARING, 2-BOLT FLANGE 5/8 BORE

1

372258

IDLER LH DRIVE BELT ASSY

1

372258

IDLER RH DRIVE BELT ASSY

1

P462842

MOTOR., BRAKE DEMAG, ¾ HP 1105 RPM 3/60/230-460V



P462843

MOTOR., BRAKE DEMAG, ¾ HP 908 RPM 3/50/380V

1

P703329

SPRING, EXTENSION

1

372446

ASSEMBLY, CONVEYOR DRIVE SPINDLE

1

372430

ASSEMBLY, CUTTER HEAD GEAR HUB w/BUSHINGS

2

P451937

SPRING, TORSION

1

372630

WELDMENT, CUTTER ADJUSTMENT SHAFT

1

372133

GEAR, CUTTER HEAD ADJUSTER

1

372427

ASSEMBLY, CUTTER DRIVE GEAR FORK w/BUSHINGS

2

P048719

BEARING, CAM FOLLOWER

1

372506

ASSEMBLY, ADJUSTMENT CAM w/BUSHINGS

1

372715

WELDMENT, NUT 8/16-18 LH

1

372439

DETAIL, CROSS SHAFT

1

372717

WELDMENT, APERTURE ADJUSTMENT TUDE

1

P451940

ASSEMBLY, #3 CUTTER HEAD

1

P451936

KNIVES, CUTTER HEAD (1 SET OF 6)

1

P073358

BELT, HTD TWIN POWER (TEETH ON BOTH SIDES)



PL – 1280mm; P – 8mm; Wth – 30mm

1

P073359

BELT, HTD PL – 800mm; P – 8mm; Wth – 30mm

1

P074207

BELT, POLY-V  36″Long 10Ribs .93Wide

1

P073995

BELT, V HI-POWER II 75″ LG

Beyond common inventory parts, we provide spare parts for all equipment we sell, and have the lowest lead times for the parts we sell most commonly:

  • Husker Rollers (including fresh market low profile)
  • Cutter Heads & Knives
  • Shaft Assemblies
  • Spur Gears
  • Bearing Brackets
