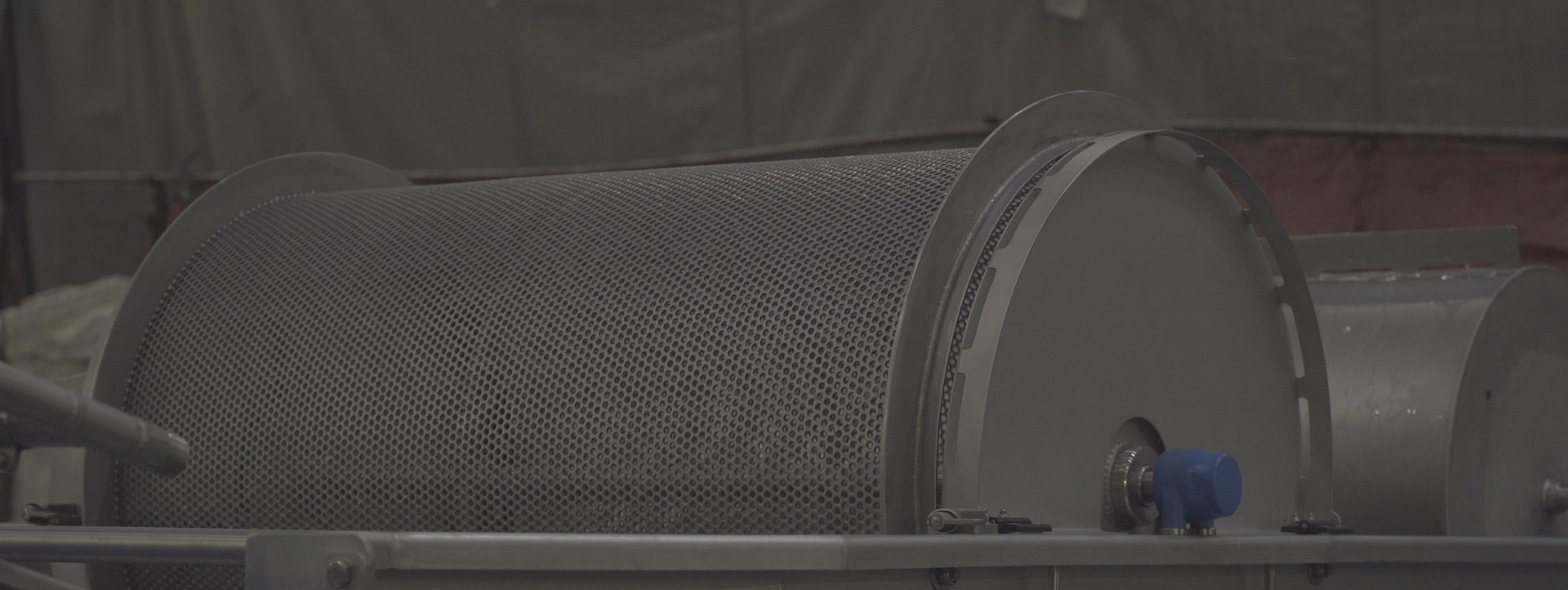

PXDF Drum Filter

Filter out solids from wastewater, especially after an abrasive peeler.

Product Description

Separate Potato and Root Veg Solids and Liquids Post Peeling

This drum filter is highly recommended to be used as part of your water cleaning system after an abrasive peeler.  The machine is designed to separate solids from wastewater and other industrial slurries. Our drum filter is configured for food processing, using technology similar to brewing, chemical and plastic production.

Operation

  • Waste liquid enters the machine through ports and flows onto the drum
  • The drum filter uses sieve slots to keep solids larger than the screen from entering
  • These solids that remain on the drum surface are later removed by a scraper
  • The screened water passes into the drum and is directed to the outlet port installed in the bottom part of the machine body.
  • The sieve rotational speed is adjusted with the variable frequency drive, which allows the screening process to be matched to the particular raw material and the required capacity
  • Additionally, the machine is equipped with a sprayer for cleaning the drum with water

Construction

  • Machine body
  • Slotted sieve rotary drum
  • Solid removal scraper and discharge
  • Sieve cleaning system
  • Screened liquid outlet port
  • Inflow cleaning port
  • Drive unit with drum bearings
  • Connection and overflow ports
  • Fixed housings and safety guards
  • Control cabinet with control systems

If this does not load in your browser, click here to view in a new tab.

If this does not load in your browser, click here to view in a new tab.

The machine consists of the following main elements and units:
• Machine body
• Rotary drum with slotted sieve
• Exterior drum solid scraper
• Sieve cleaning system
• Screened liquid outlet port
• Cleaning hole of the inflow zone
• Drive unit with drum bearings
• Connection and overflow ports
• Fixed housings and safety guards
• Control cabinet with control systems
